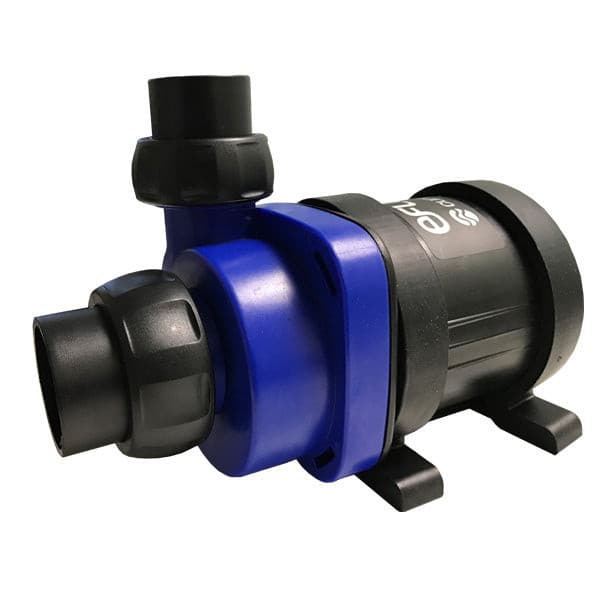

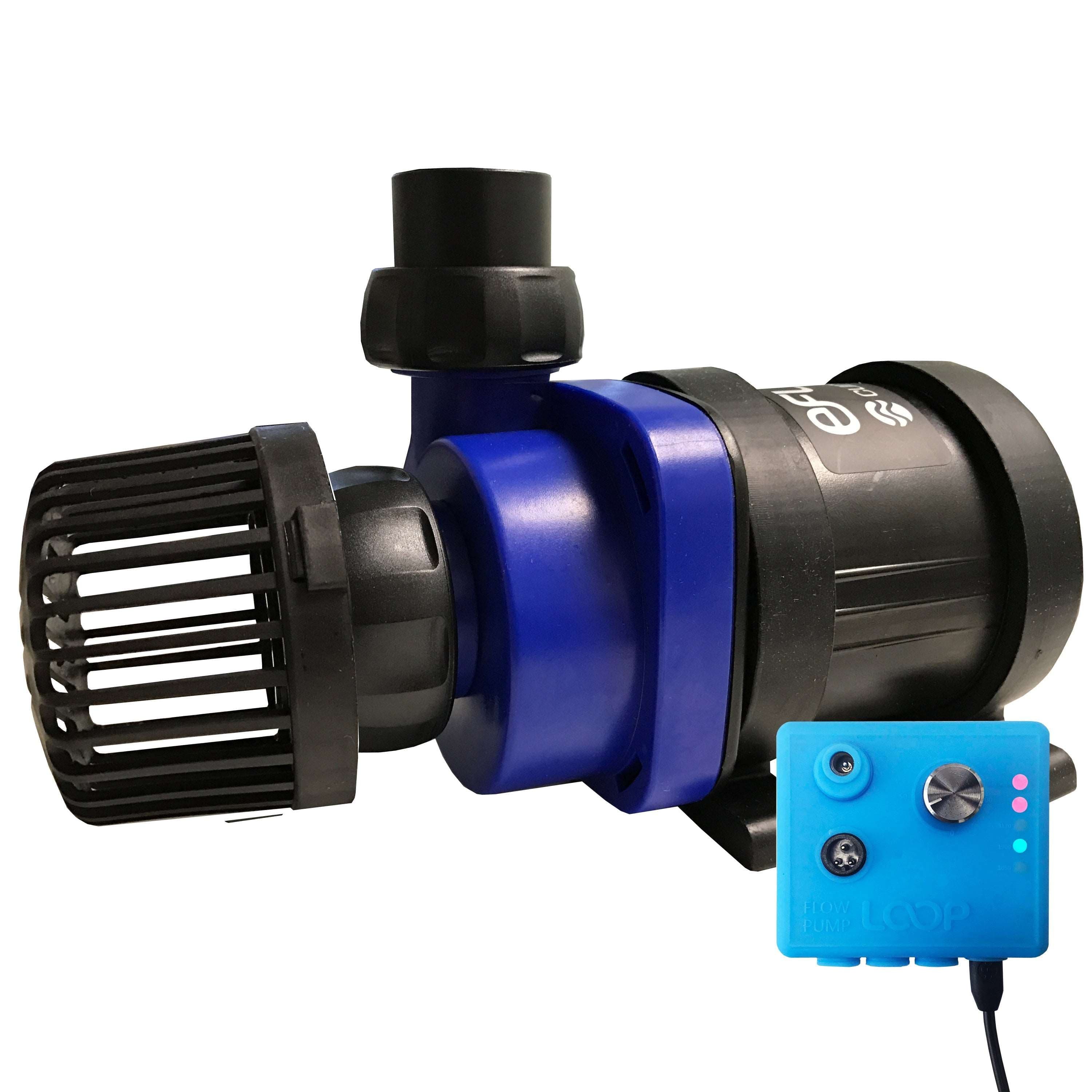

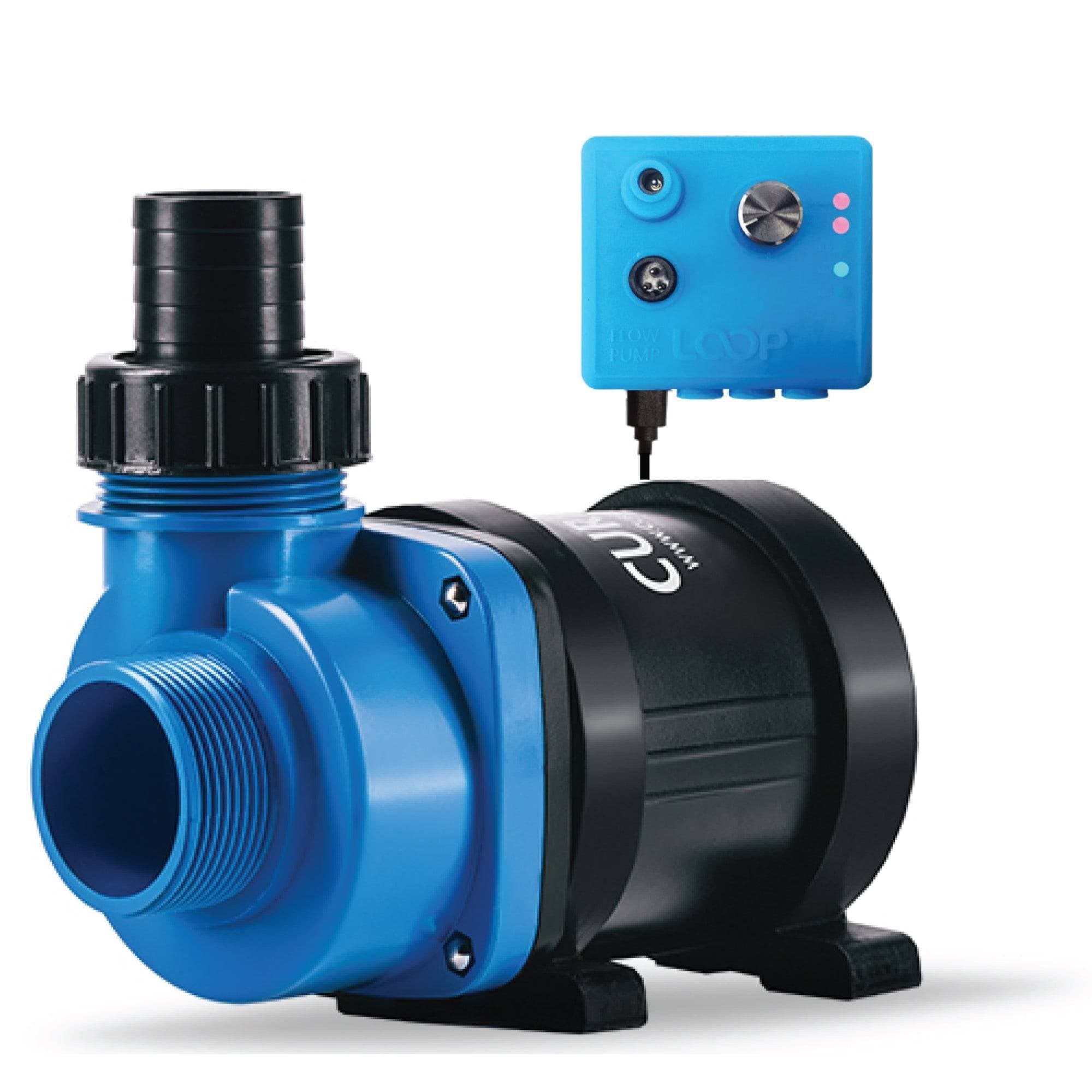

eFlux Aquarium DC Flow Pump with Flow Control 1050 GPH

6009
A perfect compact solution for a quiet yet powerful return pump. Featuring a sealed DC motor and magnetic drive design, eFlux DC pumps provide up to 65% energy savings over traditional AC pumps and are completely controllable. Running virtually silent and transferring minimal heat – they provide efficient, reliable water flow....

A perfect compact solution for a quiet yet powerful return pump. Featuring a sealed DC motor and magnetic drive design, eFlux DC pumps provide up to 65% energy savings over traditional AC pumps and are completely controllable. Running virtually silent and transferring minimal heat – they provide efficient, reliable water flow.

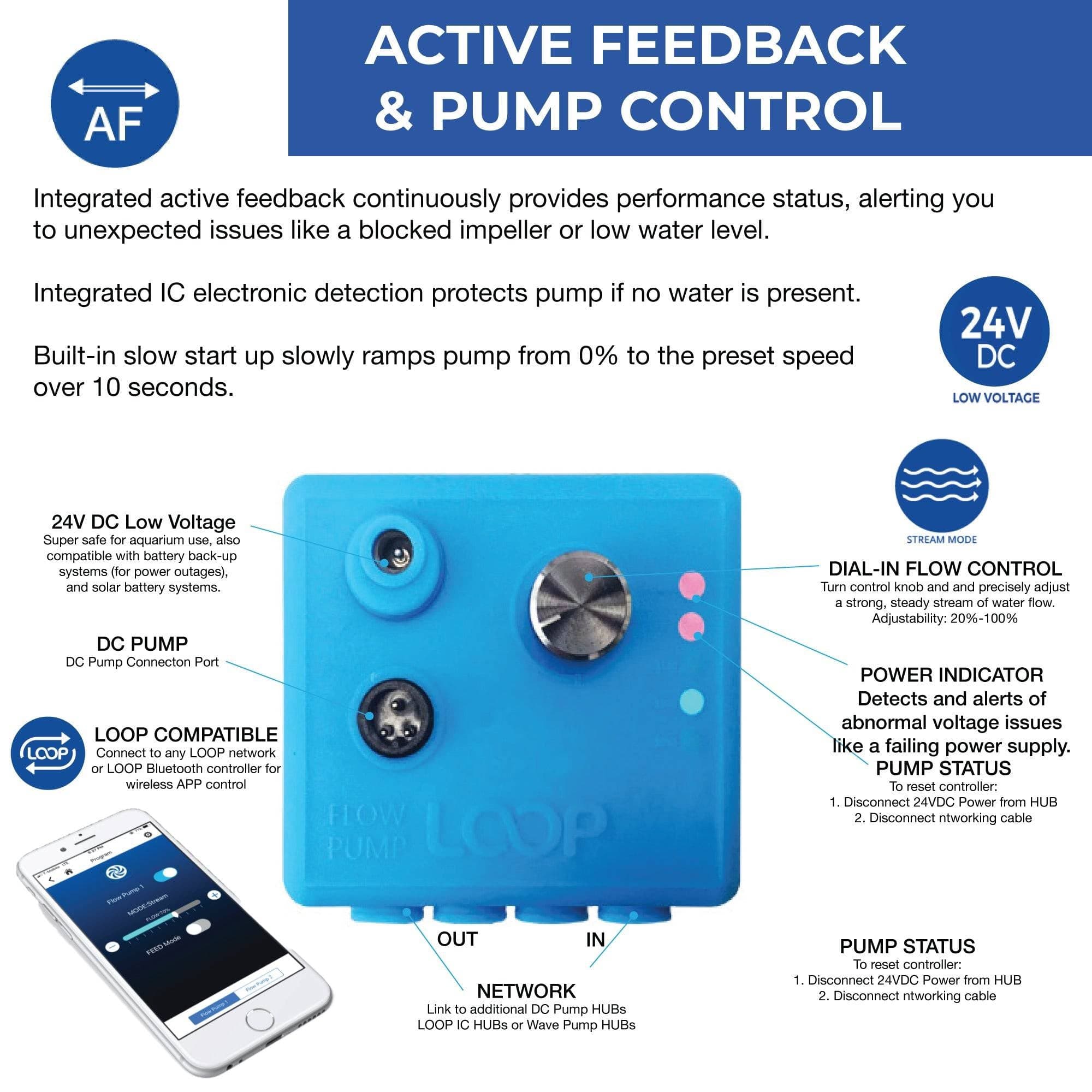

Unlike traditional AC water pumps, eFlux flow pumps are DC-powered and controllable. The included LOOP HUB controller provides variable speed flow control to dial in the flow. Integrated active feedback continuously provides performance status, alerting you to unexpected issues like a blocked impeller. Integrated IC electronic detection protects the pump if no water is present. Smart start-up slowly ramps pump from 0% to the preset speed over 10 seconds.

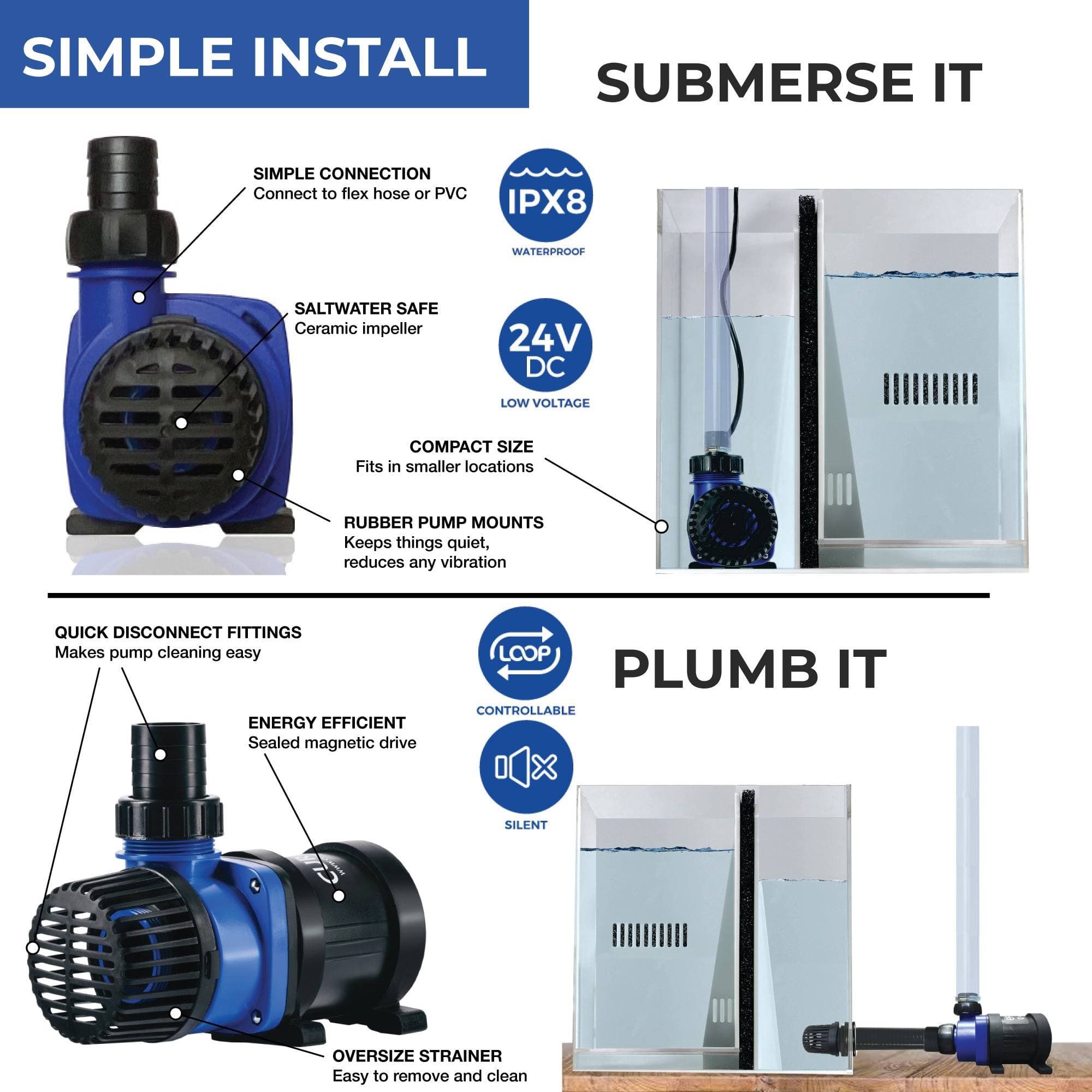

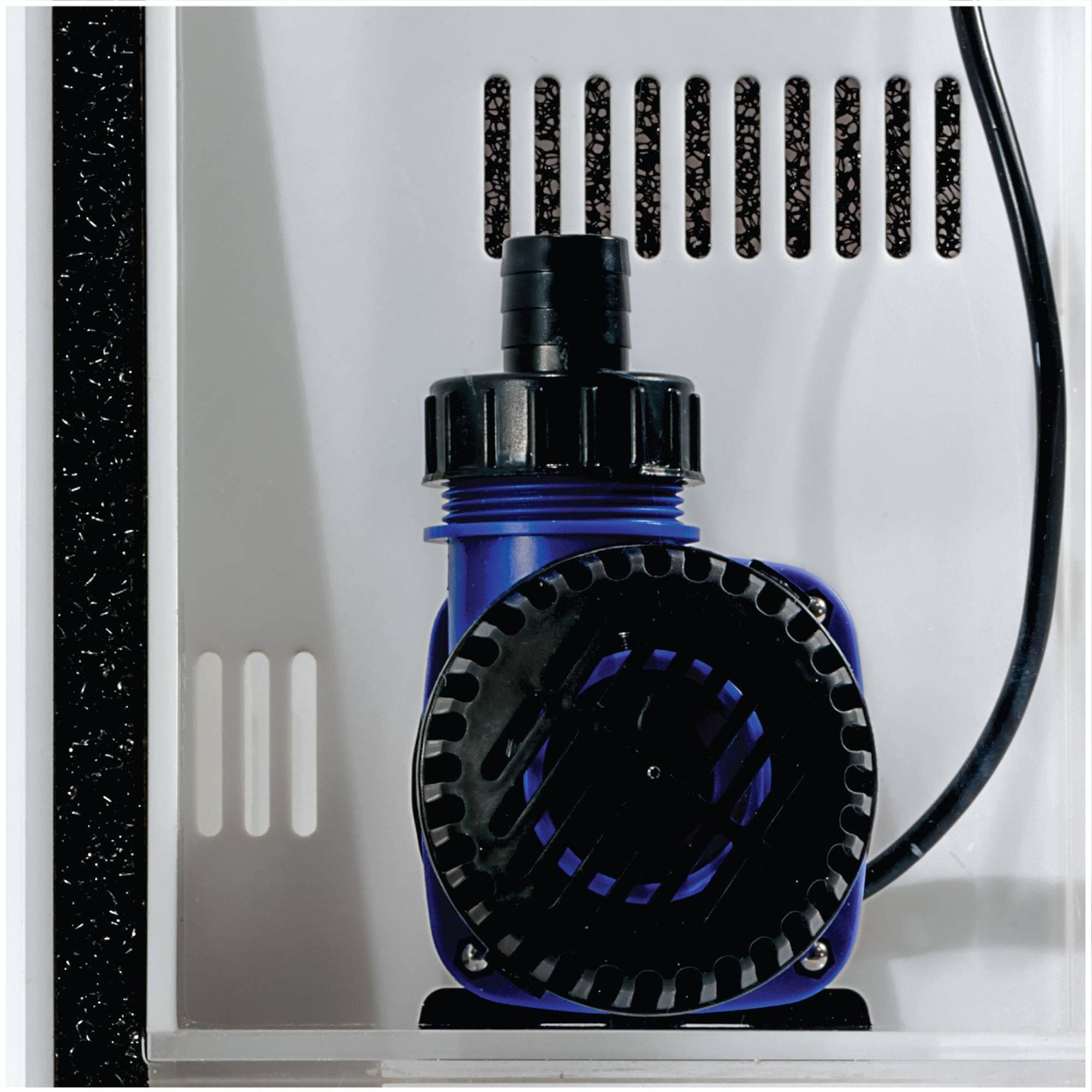

Safe for saltwater or freshwater systems, eFlux® DC flow pumps can be installed submersible or external (inline). Quick couple hose barb fittings are included to make installation and servicing easy. Their compact size and small footprint make them ideal to fit into smaller sumps and tight spaces. Designed for use in sump filter or inline (external), each pump includes a molded inlet strainer and quick disconnect fittings for plumbing to flex hose or PVC.

  • Quiet operation
  • Up to 65% in energy savings
  • Safe, low voltage 24V DC
  • LOOP® compatible
  • Soft start gently ramps pump to speed
  • IC electronic detection protects pump if no water is present
SPECIFICATIONS
Model(s) Flow Range (gph) Watts Range Max. Head Inlet Size
(fits ID Hose)
Outlet Size
(fits ID Hose)
Inlet/Outlet
PVC Fitting
Actual Pump
Dimensions
Pump Dimensions
w/ Strainer
6008 40 - 520 2 - 20 7.2 ft. / 2.2M .75" .75" & .5" 0.75" MNPT L x W x H
3.95" x 2.7" x 3.7"
L x W x H
4.95" x 2.7" x 3.7"
6009 210 - 1,050 6 - 30 10.5 ft. / 3.2M 1.25" .75" & 1.0" 1" Slip / 0.75" Slip L x W x H
5.3" x 3.3" x 4.2"
L x W x H
7.5" x 3.3" x 4.2"
6010 380 - 1,900 11 - 55 14.75 ft. / 4.5M 1.25" & 1.5" .75" & 1.0" 1.5" MNPT/1.5" MNPT** L x W x H
6.4" x 3.5" x 4.7"
L x W x H
8" x 3.5" x 4.7"
6011 635 - 3,170 16 - 80 20 ft. / 6M 1.25" & 1.5" .75" & 1.0" 1.5" MNPT/1.5" MNPT** L x W x H
6.4" x 3.5" x 4.7"
L x W x H
8" x 3.5" x 4.7"

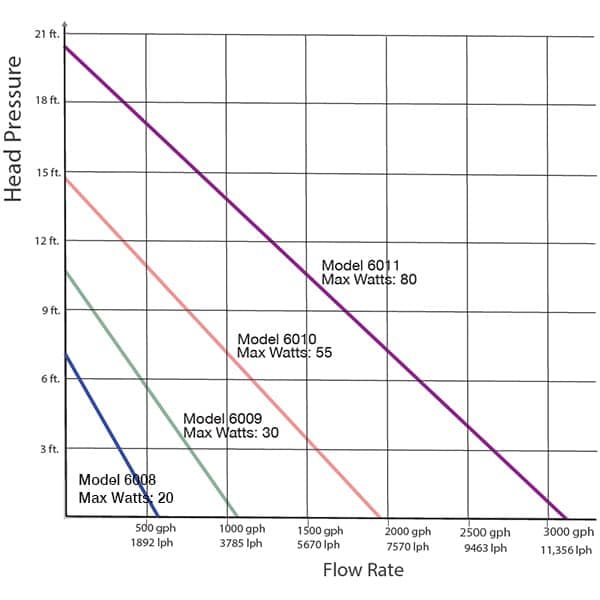

FLOW CHART

eFlux DC flow pump head pressure flow chart

WHAT'S INCLUDED
  • 1 eFLUX DC Water Pump, 1,050 GPH Max, 30w

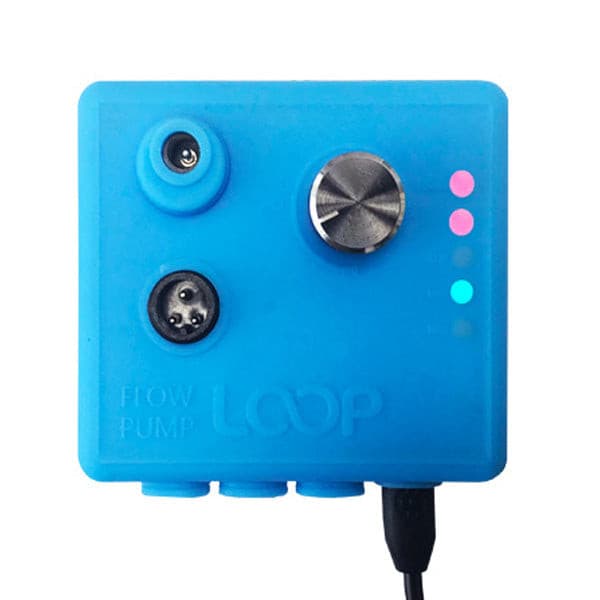

  • 1 LOOP Hub controller
  • 1 24V DC UL® power supply
  • 2 Rubber pump mounts (pre-installed)
  • 1 Inlet pump strainer
  • Quick disconnect fittings/hose barbs
  • Instructions

eFlux DC Flow pump 1900 gph fittings pump included in box

SUPPORT and VIDEOS

Download Documents
