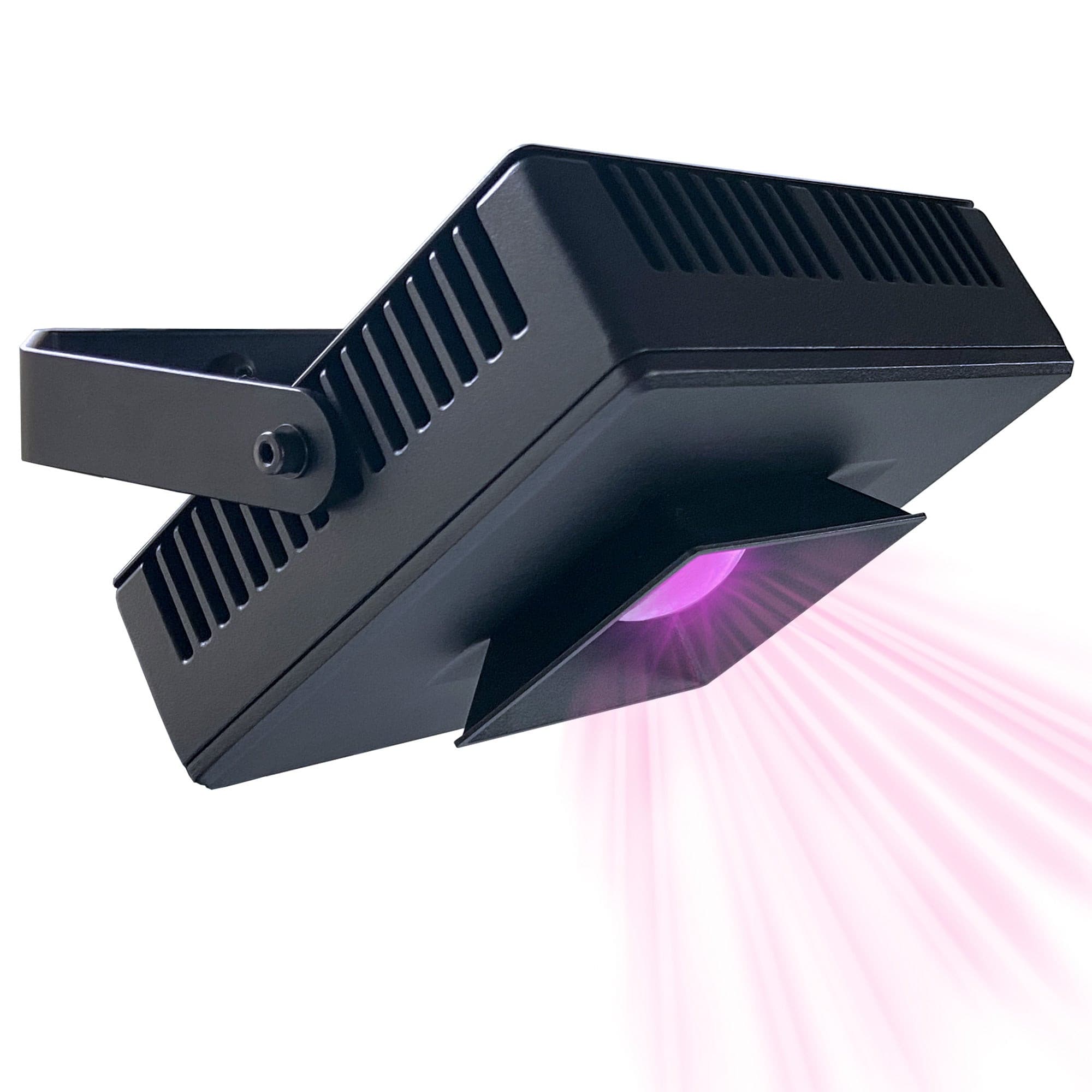

Cannon 80w LED Light Refugium Red

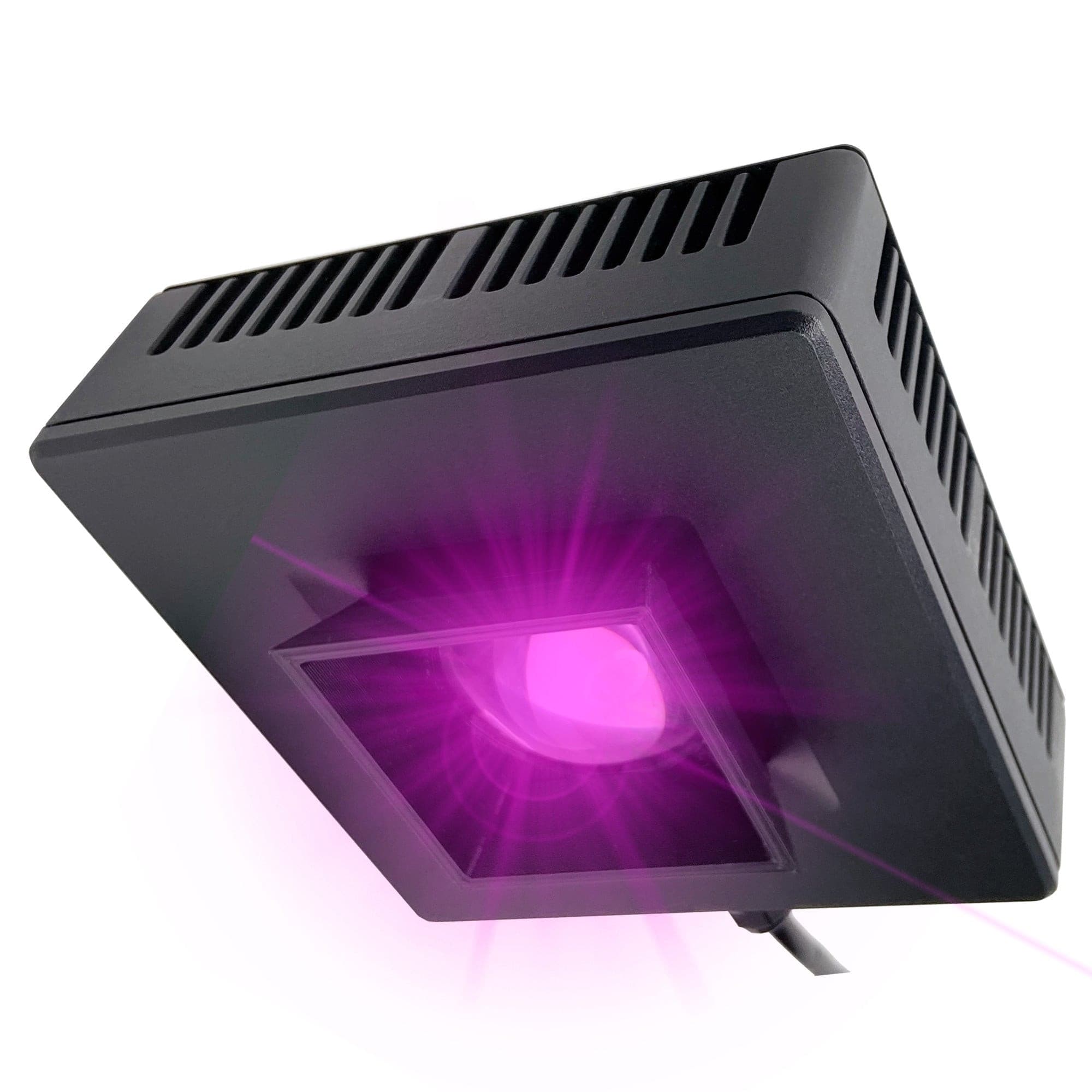

Grow plants faster with the Cannon 80 LED light. It’s a compact, powerful luminaire combining True Red 660nm and 450n Blue. Ideal for refugiums, hydroponic systems, seedling/plant growth, or enhancing red colors in themed exhibits.
The Cannon 80 is our brightest, most versatile commercial LED light yet. It combines all the benefits of high-density LED lighting into a compact, modular design with simple smart control. Whether you’re lighting a new touch tank, adding supplemental blue light for live corals, or illuminating a living wall – the Cannon 80 LED will give your exhibit the attention it deserves.

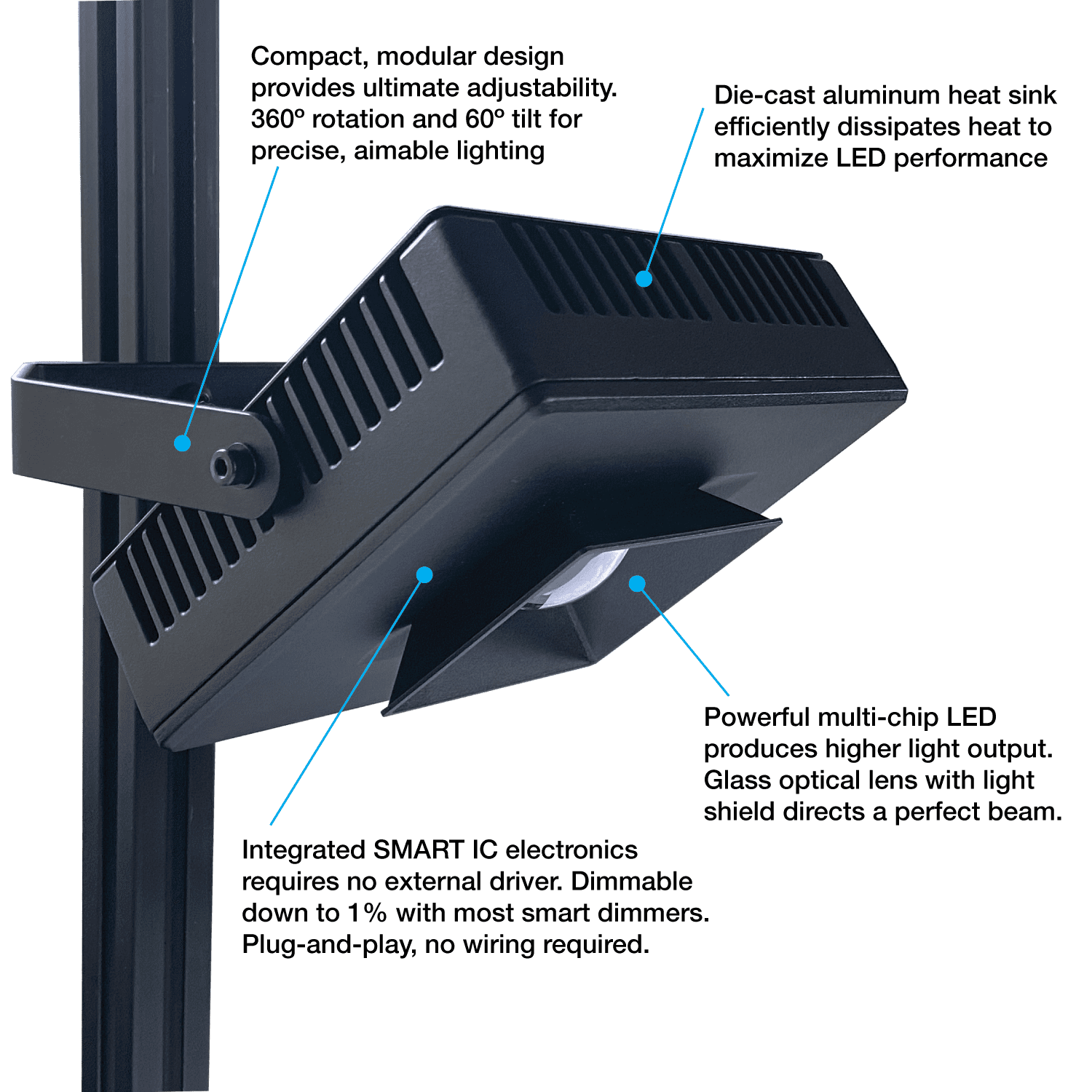

Featuring the latest in high-density multi-chip LED emitters, it produces a powerful, penetrating beam of uniformly blended light. Marine-grade aluminum housing is thermally efficient and built to last. An integrated Smart IC driver allows the light to run with no external driver. Simply mount it, adjust it, and plug it in – no wiring required.

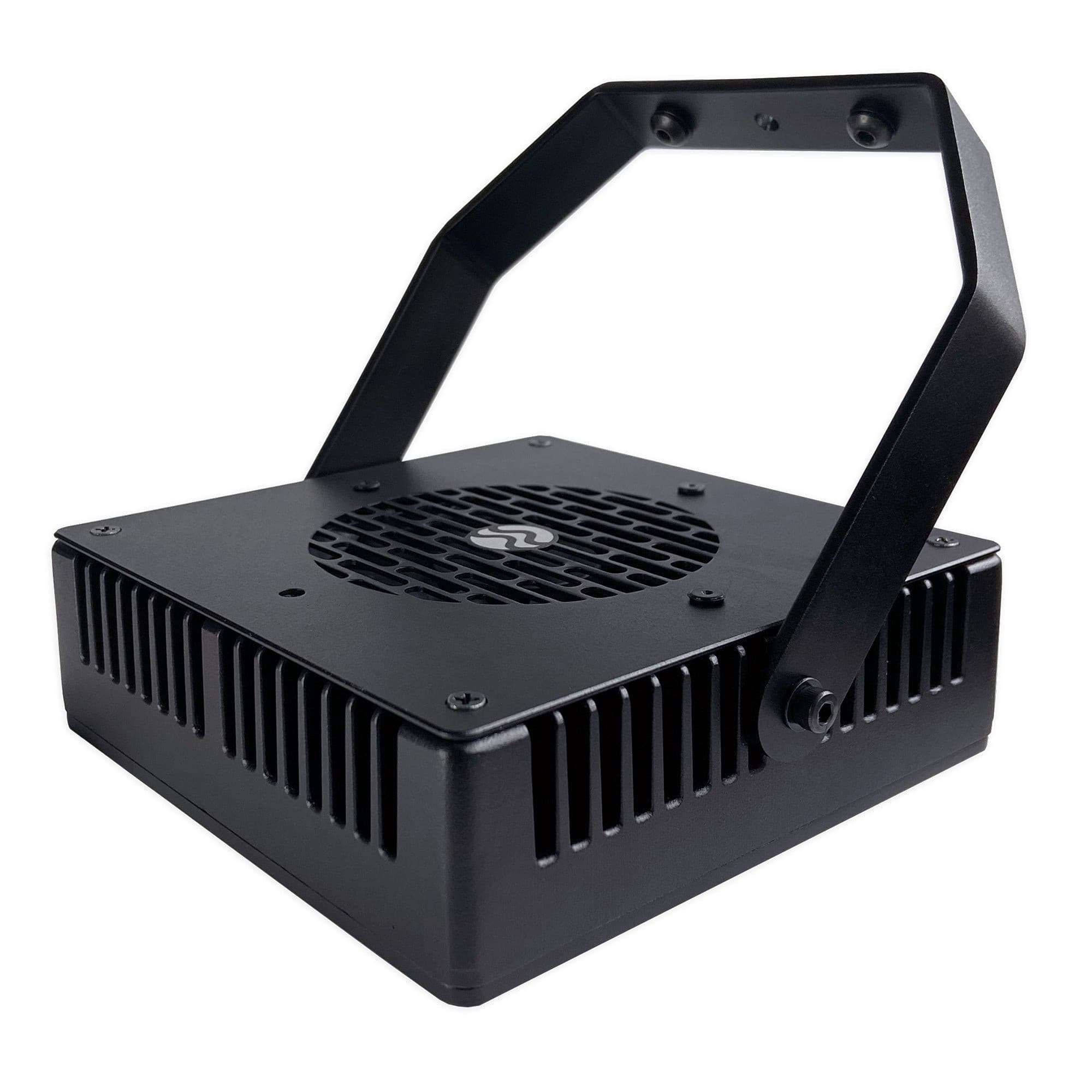

With only a 5 x 5 inch footprint, its modular design fits almost anywhere. An integrated swivel bracket delivers light exactly where you want it, providing 360° rotation and 0°- 60° tilt. Custom glass optical lens with an 85° beam angle delivers light uniformly to a precise target area with an exceptionally high punch rate and optimal spread. The integrated lens snoot prevents any light spillage.
- High-density multi-chip LED emitter provides superior water penetration
- Swivel bracket provides easy-adjust angle and light direction
- Plug-and-play installation, no wiring required
- Modular – use multiple LEDs together, adjust and blend
- Smart dimmer compatible, dim down to 1%
- Integrated Smart IC Driver - excellent efficiency and longevity

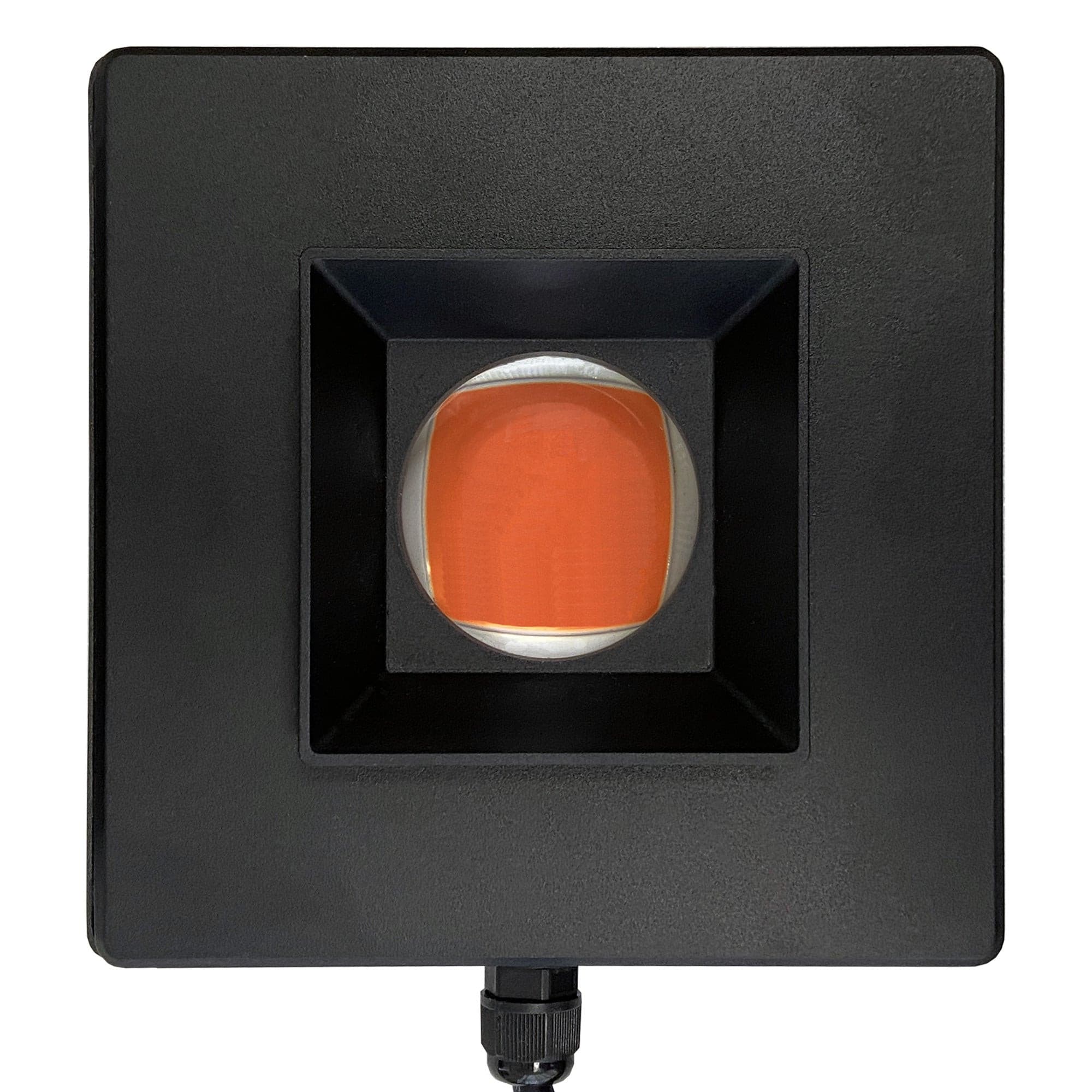

- Glass optical lens with snoot - uniform color blending, stunning shimmer
FIXTURE DIMS: 5.2 in x 5.2 in. x 2.1 in. (13.2 x 13.2 x 5.3cm)
WITH BRACKET DIMS:5.5 in x 5.5 in. x 6.5 in. (14 x 14 x 16.5cm)
COOLING: Active Fan Cooled
INPUT VOLTAGE: 100-130VAC/50-60Hz
MAXIMUM WATTS: 81 watts
DIMMING: 0-100% Smart Dimmer @120V
CABLE: 15 ft. AC Power Cord w/Disconnect
SWIVEL BRACKET: Provides 360° rotation and 0°- 60° tilt
SPECTRUM WAVELENGTH: 450-455nm Blue + 650-660nm
FLUX: 6,088 lumens
EFFICACY: 75.1 lm/w
L70: 45,000 Hrs.
SPREAD: 85° glass optical lens emits a perfect height to width ratio beam, penetrating water up to 12 ft. (3M) depth.
*Cannon 80 LED lights are designed for commercial use and must be used with a GFCI
- 1 - Cannon 80 LED, Refugium Red
- 1 - Swivel Hanging Bracket

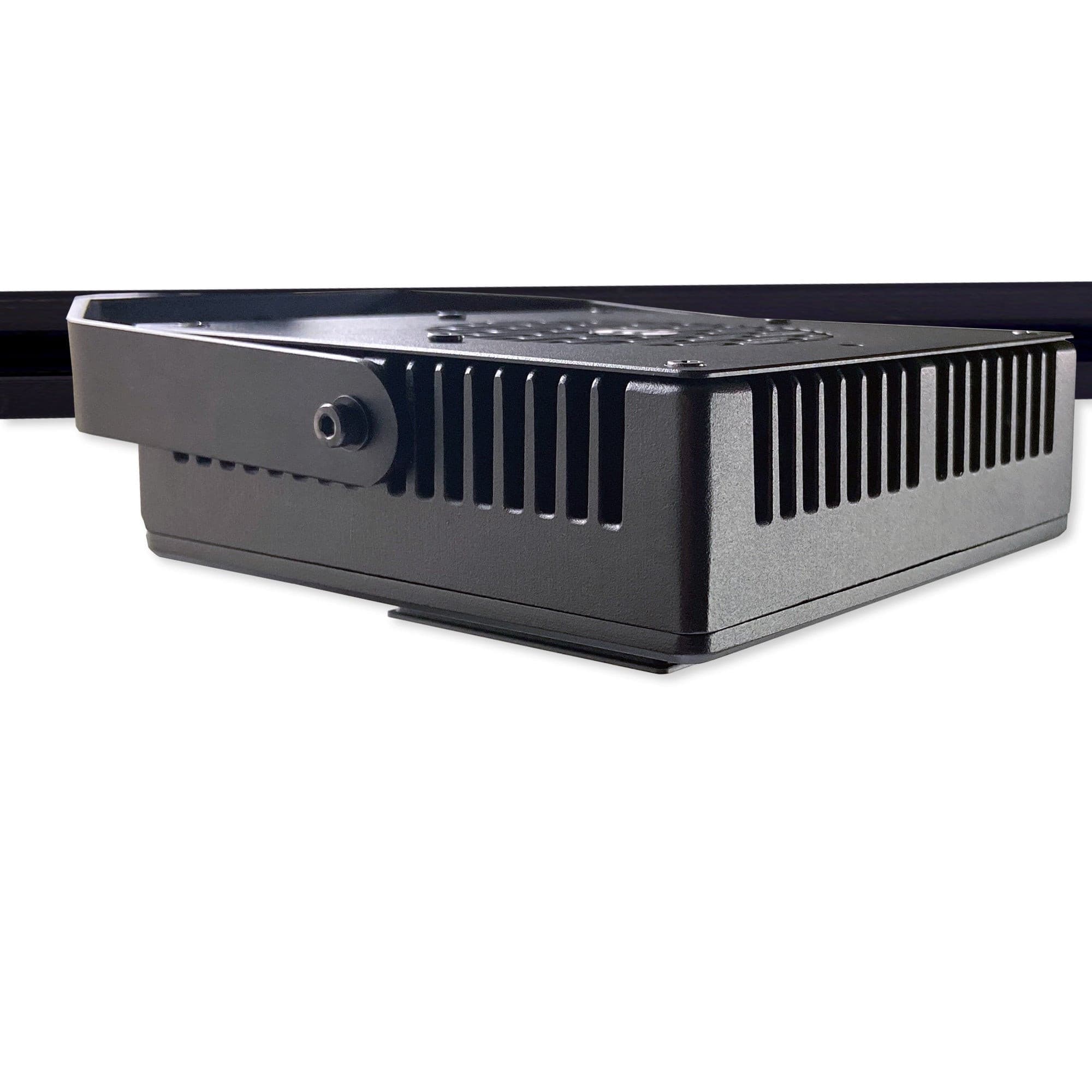

- T-Slot Mounting Hardware
- 1 - 15 ft. (3M) 100-120VAC Cable
- Cable Wraps and Instructions
SUPPORT AND VIDEO
- Cannon 80 Specification Sheet
- Cannon 80 Product Installation Manual
- Cannon 80 IES Files
- Cannon 80 Revit Files
